SonoScape E2
The SonoScape E2 is a real time portable Colour Doppler Ultrasound machine that reaches beyond your expectations due to its
compact configuration and automatic calculations to enhance your diagnostic confidence.
Applications: General Abdo, OB/GYN, Vascular, MSK, Small Part, Pediatric, Cardiac, Urology, Physio, POC
Standard Configuration
Standard Hardware included:

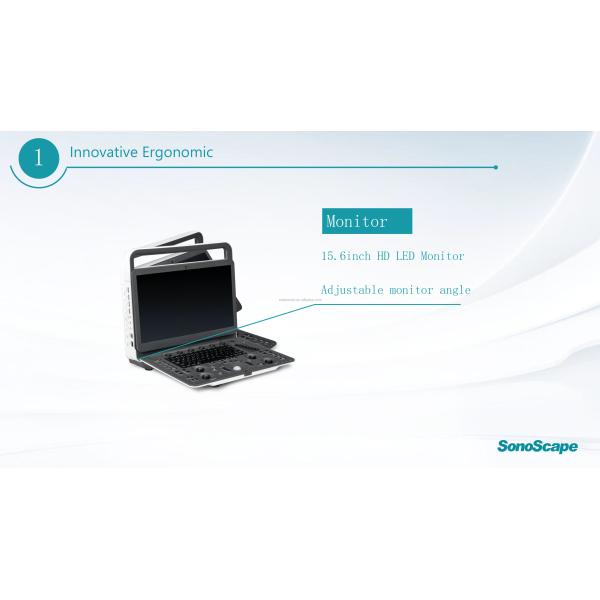

E2 main unit with 15.6" High Resolution LED color monitor
Two transducer connectors
USB 2.0/Hard Disk 500 G
Rechargeable Battery
Mains Power Adaptor
Carry Bag
Probe of choice
Standard Software included:
Imaging modes: B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW
Dynamic Multi-beam Technology
Tissue Harmonic Imaging, Pure Inversion Harmonic Imaging, Tissue Specific Imaging
Spatial Compound Imaging
Widescan: Trapezoid Imaging
Convex Extended Imaging
μ-Scan: 2D speckle reduction technology
PW Auto Trace, TEI Index, Auto: Auto optimization for B/ M/ PW/ CW
TGC: Time gain compensation, Duplex, Triplex, B/C dual live
Zoom, Standby Mode, Show Gallery, 2D Steer, Auto IMT
Biopsy Guide
DICOM 3.0
Optional Hardware
Mobile Trolley
Footswitch
Large Capacity Battery
B/W video printer: SONY UP-D897/SONY UP-X898MD
External DVD
Bluetooth Controller
Optional Software
Color M Mode
Continuous Waves Mode
Tissue Doppler Imaging
Anatomic M Mode
LGC: Lateral gain compensation
SR Flow
Vis-Needle
B Mode Prospective Saving
2D Panoramic Imaging
Wifi and ECG Module
Probe Options
Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz
Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Convex array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
Convex array 6CT-A (Intra-operative), 3-15MHz/ R40mm
